Description

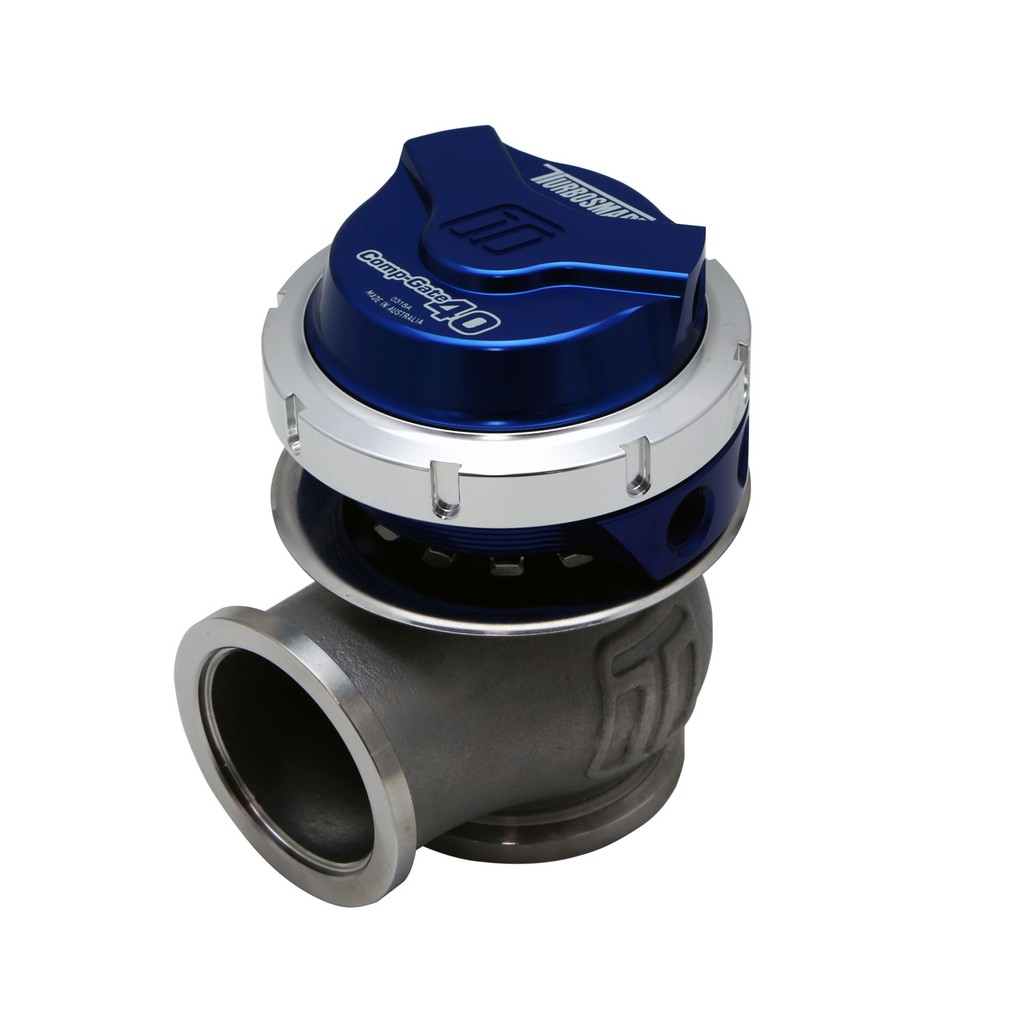

Gen-V WG40 Comp-Gate 40 14psi Original Turbosmart Wastegate

Part No: TS-0552-1011 (Blue)

Part No: TS-0552-1012 (Black)

Part No : TS-0552-1013 (Purple)

Part No : TS-0552-1014 (Red)

Part No : TS-0552-1015 (Limited Black)

The Gen-V WG40 Comp-Gate40 external wastegate is a cost effective, high performing 40mm external wastegate.



The Gen-V provides extensive user configurability, world leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity.



A direct fit upgrade to all 4th-generation Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base, strap-type V-band clamps, liquid-cooling, 1/8″ NPT ports, and are provided with a range of springs.



They are also available in Motorsport and compressed gas-only versions for those requiring specific applications.



Product features summary:

• Liquid cooling provision

• Strap type V-band clamps

• User adjustable actuator position

• Modular actuator design

• Motorsport Endurance / Compressed Gas configurations available



Included in the Box:

• Wastegate unit (pre-assembled with spring as per order)

• SS316 Valve seat

• Inlet V-Band

• Inlet SS304 weld flange

• Outlet V-Band

• Outlet SS304 weld flange

• Collar tool (master/slave)

• 17/7 PH 3, 5, 7, 14 psi spring kit (1x spring installed)

• 4x 1/8” NPT plugs (1x installed) / 2x 1/8” NPT nipples

• Sticker

• Instruction card

Additional information

Wastegate

Tial Sport – Tial 38MM, Turbosmart – Turbosmart 40mm, Turbosmart – Turbosmart 45mm
